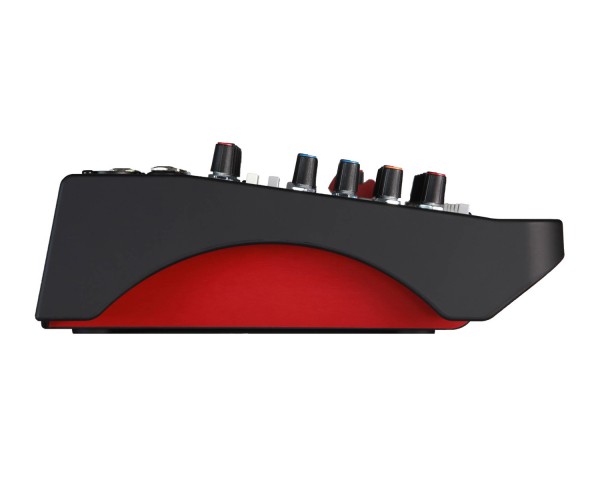

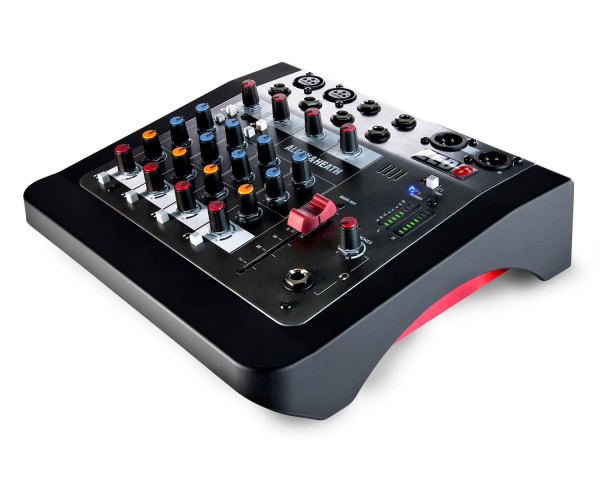

ZED6 2-Mic/Line 2 Stereo i/p Console with 60mm Faders

£99.00 ex VAT

Product Specifications

General

• Input
  • Mono channel (XLR) Input +6 to –63dBu for nominal (+17dBu in max)
  • Mono channel Line Input (Jack socket) +10 to –26dBu (+30dBu maximum)
  • Insert point (TRS Jack socket) 0dBu nominal +21dBu maximum
  • Stereo Input (Jack sockets) 0dBu nominal (control = Off to +10dB)
  • Stereo input (phono sockets) 0dBu nominal (control = Off to +10dB)
• Output
  • L, R & Mono Outputs (L&R XLR, Mono Jack) 0dBu nominal. +21dBu maximum.
  • Aux Outputs (Jack sockets) 0dBu nominal. +21dBu maximum.
  • Alt Outputs (phono sockets) 0dBu nominal. +21dBu maximum.
  • Rec Outputs (phono sockets) 0dBu nominal. +21dBu maximum.
• Frequency Response
  • Mic in to Mix L/R Out, 30dB gain +0.5/-1dB 20Hz to 20kHz.
  • Line in to Mix L/R out 0dB gain +0.5/-1dB 10Hz to 30kHz
  • Stereo in to Mix L/R out +0.5/-1dB 10Hz to 30kHz
• THD+n
  • Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out 0.004%
  • Mic in to Mix L/R Out, 30dB gain 1kHz 0.014%
  • Line in to Mix L/R out 0dB gain 0dBu 1kHz 0.005%
  • Stereo in to Mix L/R out 0dB gain +10dBu 1kHz 0.003%
• Headroom
  • Analogue Headroom from nominal (0Vu) 21dB
  • USB in & out headroom from nominal (0Vu) 14dB
• USB Audio CODEC (Coder/Decoder)
  • USB Audio In/Out USB 1.1 compliant 16bit.
  • Sample Rate 32, 44.1, or 48kHz
• Noise
  • Mic Pre EIN @ max gain 150R input Z 22-22kHz -127dBu
  • Mix L/R out, L/R faders = 0, 22-22kHz ZED-14 -88dBu
  • Mix L/R out, L/R faders = 0, 22-22kHz ZED-18 -86dBu
  • Mix L/R out, L/R faders = 0, 22-22kHz ZED-24 -84dBu

Physical & Dimensions

• Height: 98mm
• Width: 645mm
• Depth: 465mm
• Weight: 10.5kg
